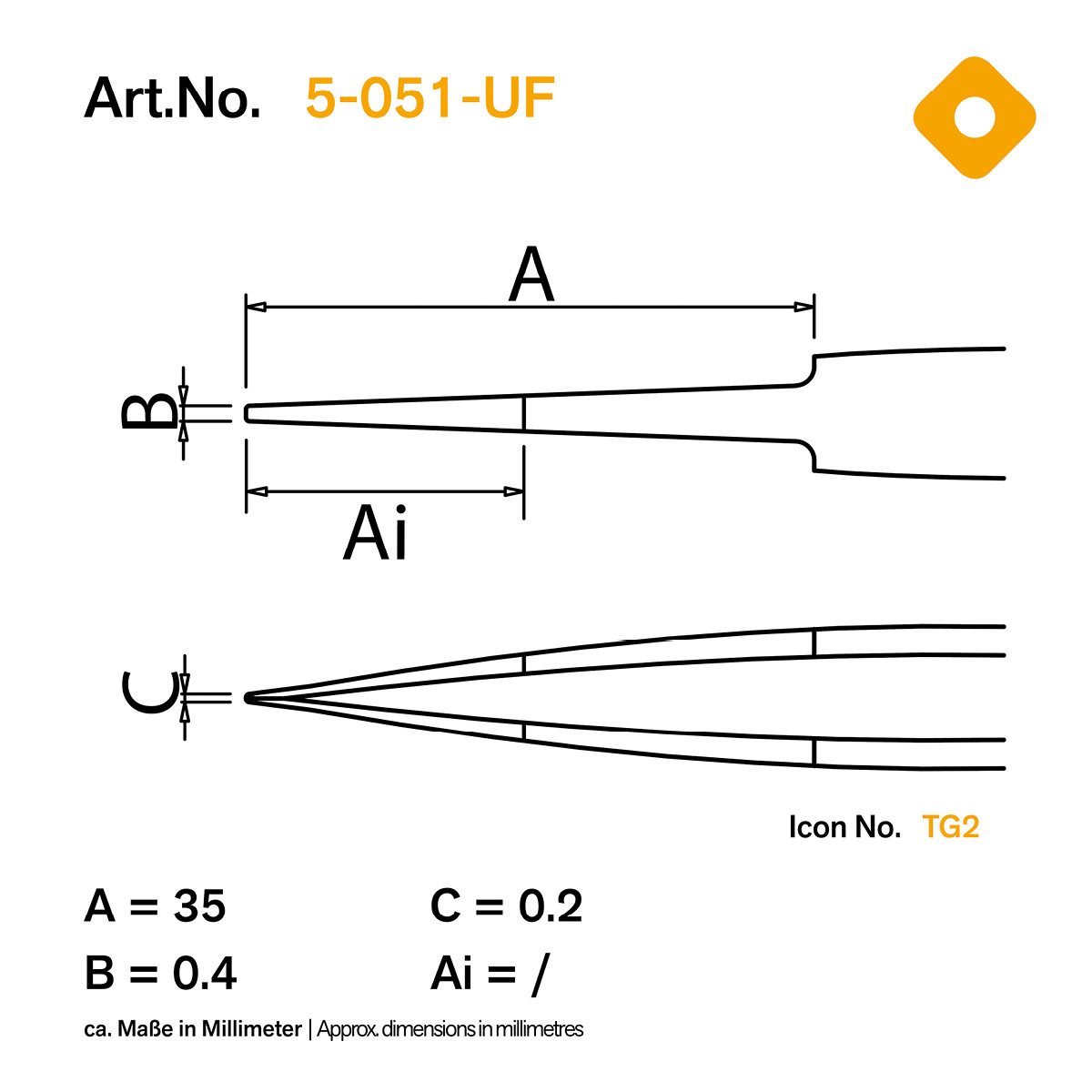

straight very sharply pointed, tapering points approx. 35 mm

tip thickness 0.2 mm (+/-0.05 tolerance)

form 2

material stainless steel SA antimagnetic

matt polished surface, smooth and glare-free

ESD coating dissipative between 10^6 to 10^9 ohm

length 120 mm

weight 15 g

For precise gripping, holding, and positioning work in laboratories, on testing equipment, especially under the microscope. With a tip dimension of 0.2 mm with a tolerance of +/-0.05, also suitable for equipping robotics (pick-and-place), for repeatable accurate setting can be enabled.

100% stainless steel anti-magnetic, stainless and acid resistant, non-reflective matt fine polished. Stainless austenitic chromium nickel quality steel with low carbon content, for good corrosion resistance (not seawater resistant). Dissipative black ESD coating achieves a surface leakage resistance of 10^6 to 10^9 ohm.
