Quick-Test Auto-Scanning Tweezers

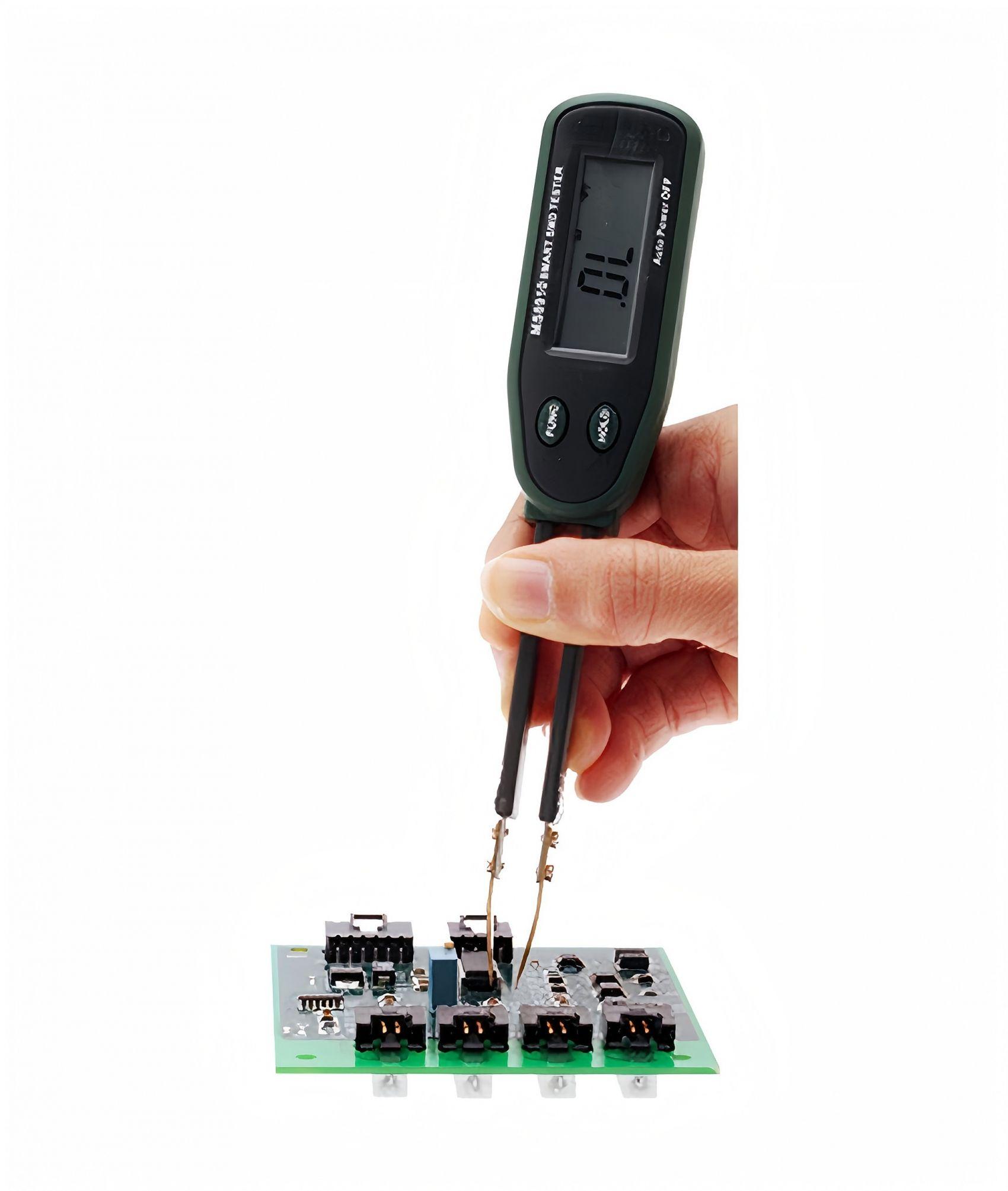

Precise, non-magnetic tips reliably contact smallest SMD. The Quick Test tweezers gives users an easy way to sort and evaluate loose components and to perform on-board measurements and debugging. Surface mount devices are usually tiny and without wire leads, making it much more difficult to test and identify SMD than conventional components. Precise tips, made of non-magnetic steel, are able to pick and reliably contact even the smallest SMD components, or take measurements from the device already mounted on a board. The probe can also be used to test conventional components with wire leads too short to insert into the test terminals.
Measures AC/DC voltage, resistance, continuity & diode test
Auto Scanning Mode/Auto range
Testing pins gold plated to reduce resistance and prevent rust
Uses Lithium battery CR2032, included
Will automatically identify whether component is a resistor, capacitor or diode
| Resistance Range | 300/3K/30K/300K/3m/30M Ohms | Resolution: 0.1 Ohms |
| Capacitance Range | 3/30/300/nF | 3uF/30uF/300uF/3mF/30mF | Resolution 1pF |
| Diode Check | Open Voltage: 2.8V | Testing Current: 2mA |
| Continuity Check | When resistance is less than 30 ohms the buzzer will be activated |
| Weight | 0.75 lb |
| Cat # | Description | Pack |
|---|---|---|
| 72907-01 | Quick-Test Auto-Scanning Tweezers |
Each |
