A family member of tetracene, 2,8-Di-tert-butyl-5,11-bis(4-tert-butylphenyl)-6,12-diphenyltetracene (TBRb) has been widely used as a yellow dopant material in TADF-OLEDs. It is popular because of its bipolar characteristics.

The greater hindrance introduced by four tetra-tert-butyl bulky steric groups (attached to the benzene rings of rubrene) is believed to reduce the chances of concentration-quenching by effectively preventing inter-molecular aggregation of the dopant molecules. In return, this can improve device performance (e.g. in terms of external quantum efficiencies, overall power efficiencies, and lifetime).

General Information

Product Details

*Sublimation is a technique used to obtain ultra pure-grade chemicals. For more details about sublimation, please refer to the Sublimed Materials.

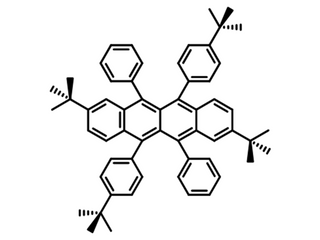

Chemical Structure

Device Structure(s)

Device structure	ITO (120 nm)/PEDOT:PSS (60 nm)/TAPC (10 nm)/TCTA (10 nm)/mCP (10 nm)/DPEPO:DMAC-DPS:TBRb (25 nm)/TSPO1 (5 nm)/TPBI (30 nm)/LiF (1 nm)/Al (200 nm) [2]
Colour	White
Max Current Efficiency	39.3 cd/A
Max EQE	17.6%
Max. Power Efficiency	41.0 lm W-1

Device structure	ITO/TAPC (75 nm)/TCTA (10 nm)/ Ir(ppy)2tmd+TBRb (30 nm)/B4PYMPM (50 nm)/LiF (0.7 nm)/Al (100 nm) [3]
Colour	Yellow
Max EQE	26.1%
Max. Power Efficiency	114.3 lm W-1

Device structure	ITO (120 nm)/PEDOT:PSS (60 nm)/mCP (30 nm)/ CzAcSF:TBPe:TBRb (25 nm)/TSPO1 (5 nm)/TPBI (30 nm)/LiF (1 nm)/Al (200 nm) [4]
Colour	White
Max Current Efficiency	35.1 cd/A
Max EQE	14.0%
Max. Power Efficiency	36.2 lm W-1

Device structure	ITO (95 nm)/HATCN (10 nm)/ TAPC (45 nm)/TCTA (5 nm)/0.4 wt% TBRb: 6 wt% 4CzPN (8 nm)/0.8 wt% TBRb: 10 wt% 4CzPN: mCBP (4 nm)/40 wt% Bepp2: mCBP (5 nm)/Bepp2 (3 nm)/5 wt% DSA-Ph*: MADN (8 nm)/TmPyPB (50 nm)/LiF (1 nm)/Al (100 nm) [5]
Colour	White
Max Current Efficiency	48.9 cd/A
Max EQE	15.1%
Max. Power Efficiency	47.4 lm W-1
