4′-Pentyl-4-biphenylcarbonitrile (5CB), CAS number 40817-08-1, is a nematic liquid crystal at room temperature with a chemical structure of cyano and pentyl substituted 1,1'-biphenyl at 4,4'-positions. 5CB undergoes a phase transition from a crystalline state to a nematic state at 22.5 °C and it goes from a nematic to an isotropic state at 35.0 °C.

In a binary 5CB/7CB mixture, crystal to nematic transition only is observed at lower rates but no apparent phase transition at higher rates, This gives a indication of a favourable synergism in the binary mixture compared to the pure system. Nematic to crystalline transition, however, is not observed in the binary mixture with increased disorder due to the different chain lengths presented in the liquid crystal phase.

When ZnO NPs is presented in 5CB as an additive, not only the threshold voltage but also the driving voltage (Vd) of 5CB can be dramatically decreased. The decrease of driving voltage of liquid crystal can help reduce power consumption for liquid crystal displays.

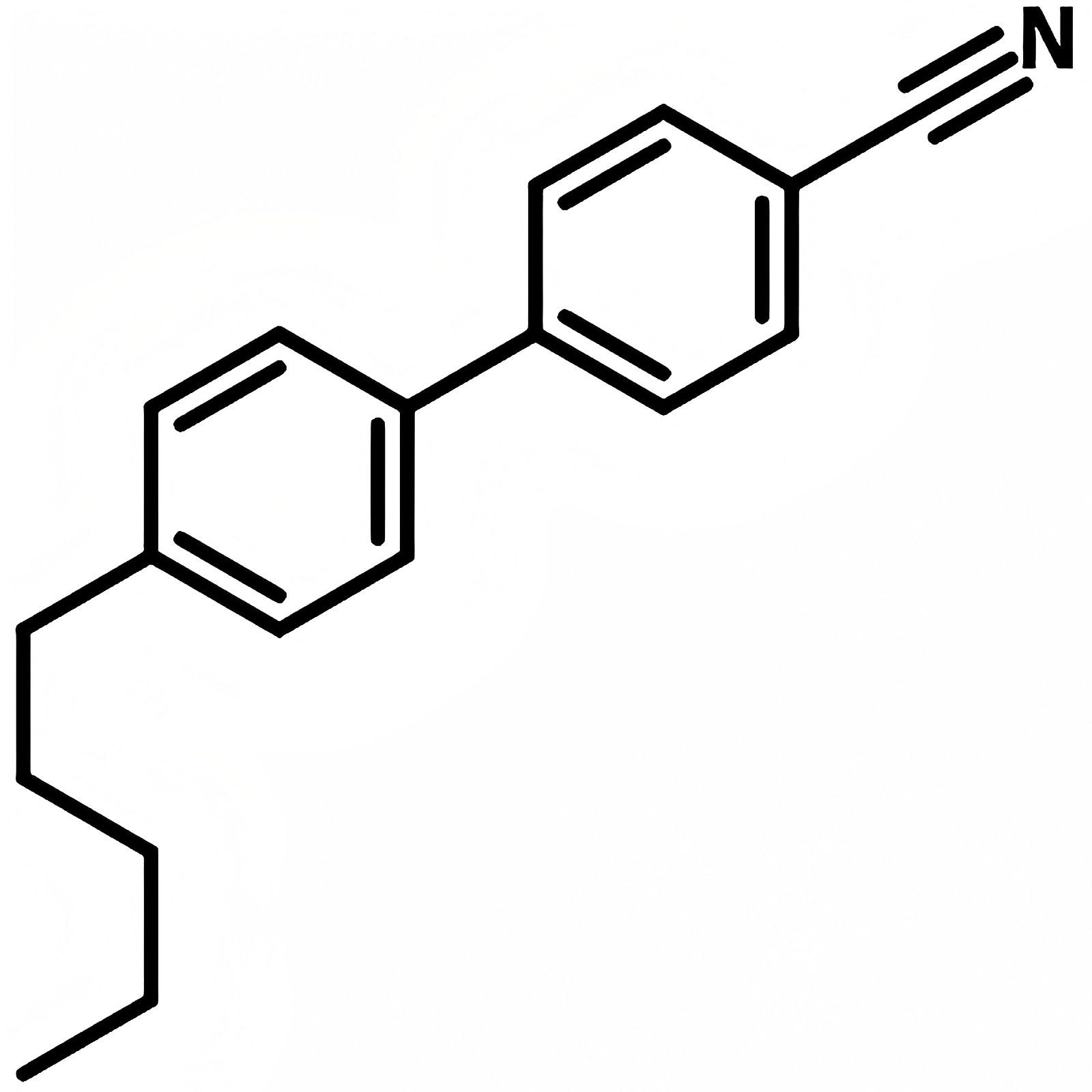

Chemical Structure

General Information

Product Details
