X-Y Cross Line Grating Replica, 2000 lines/mm, Carbon/Au/Pd Coated, mounted on 12mm AFM/STM Specimen

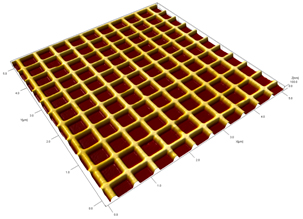

2000 lines/mm Cross Line Grating Replica  AFM Image of Cross Line Grating Replica |
|||||||||||||
|
2,000 lines/mm cross line grating replica is suitable for X-Y calibration. The replicas have well-defined trench type grooves, which makes it easy to determine the 500nm pitch.
The 677-AFM Grating Replica is made of cellulose acetate. It replaces the previous #607-AFM Grating Replica with 463nm pitch. The 677-STM Grating Replica is a carbon replica with Au/Pd shadowing supported on a 400 square mesh, 3mm copper TEM grid which is mounted on a 12mm disc. It replaces the previous #607-STM Grating Replica with 463nm pitch.
|
|||||||||||||
|
|||||||||||||
