F HC Solar PEDOT:PSS
F HC Solar (CAS number 155090-83-8) is a water-based PEDOT:PSS formulation. F HC Solar is especially developed for applications in organic photovoltaics (OPVs), polymer and perovskite solar cells, and printed sensors. The main advantages of F HC Solar ink are its high conductivity and low contact angle, to improve the deposition on top of the active layer.
Technical Data
Product Name
Clevios™ F HC Solar
Solvent
Water
Composition
PEDOT/PSS
CAS Number
155090-83-8
Solid Content
1.0 – 1.5 wt.%
Work Function
4.8 – 5.0 eV
Resistivity
<0.002 Ω/cm
Sheet Resistance
100 – 1000 Ω/sq
Conductivity
High conductivity, >500 S/cm. Contact angle approx 10° (ITO), <30° (P3HT:PCBM)
Particle Size Distribution
N/A
Viscosity
8 – 70 mPa.s
pH Value
1.0 – 2.0
Packaging

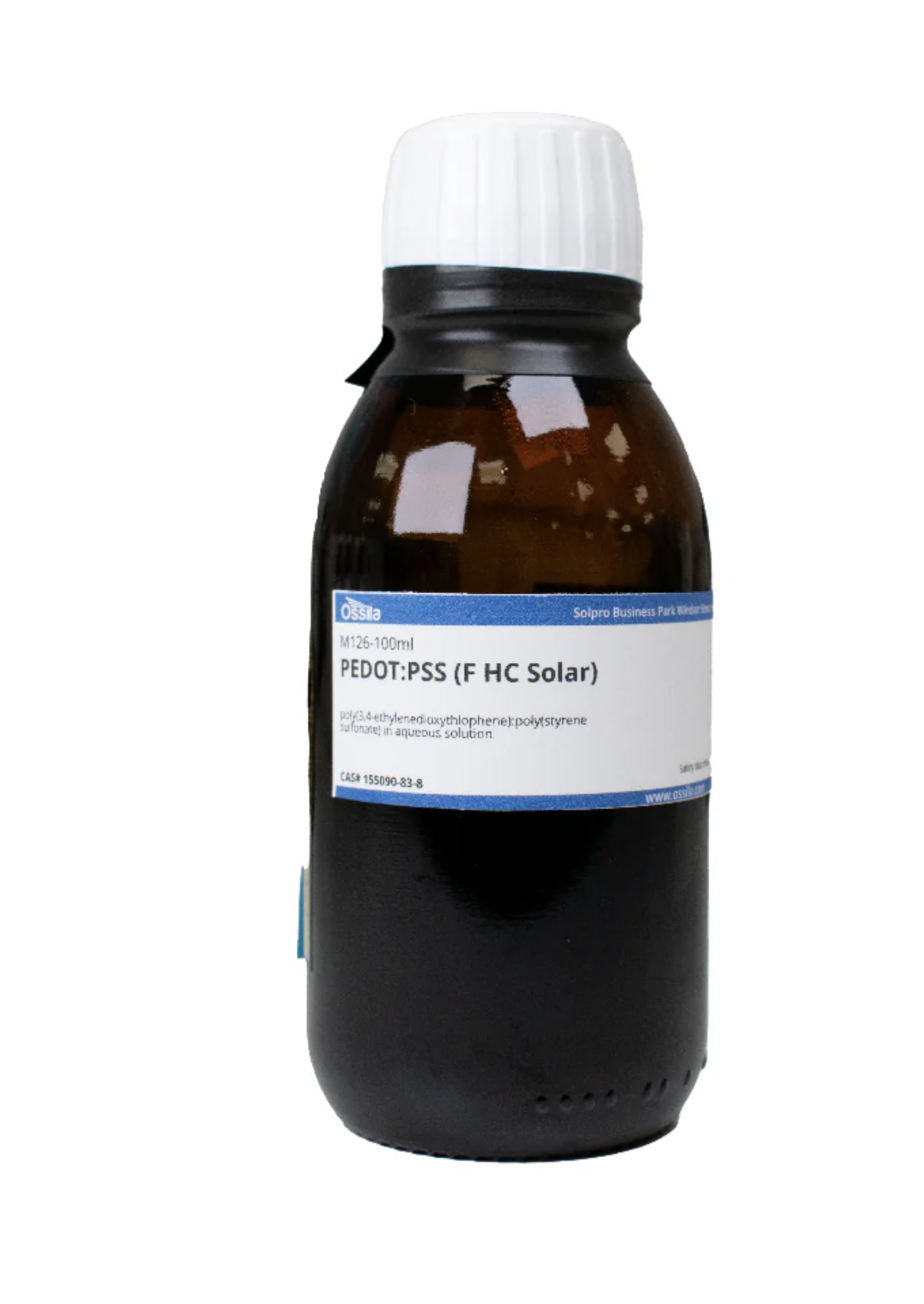

100 ml of solution sealed in a light resistant bottle with temperature indicator
Storage
3 – 5 °C
