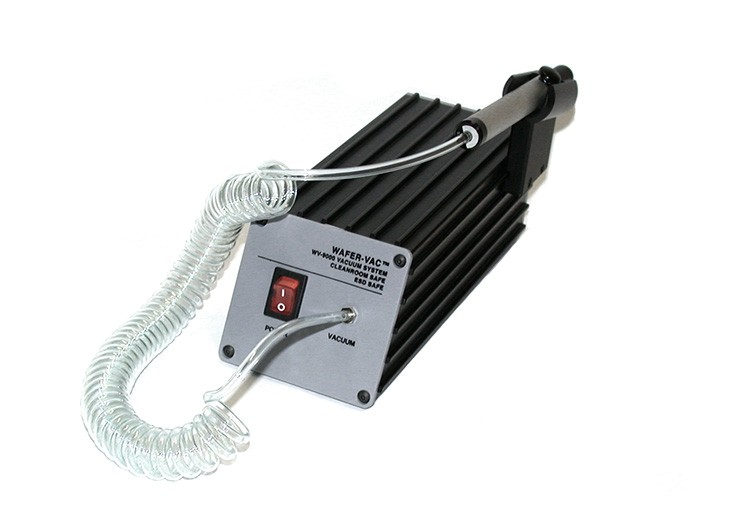

WV-9000-MW8-220

WAFER-VAC system with 8 inch molded wafer tip (VMWT-C)

Reference: WV-9000-MW8-220

A general purpose wafer vacuum handling tool that plugs directly into 220 Volt. This compact unit will handle a wide variety of wafers, solar cells and other substrates. The long-life diaphragm vacuum pump generates up to 10 inches of mercury with an open air flow of 2.3 lpm. The unit connects to ground automatically with a three-wire power cord. This WV-9000 comes complete with the following features:

· Lighted On/Off switch.

· ESD safe unit.

· Whisper-quiet operation.

· Long-life pump.

· Class 100 Cleanroom Safe

· Push-button wafer tip pen VWP-500-2.5mm

· 6 foot clear coiled vacuum hose (VCH-2.5mm-6).

· Rubber no-skid feet.

· Top mounted handle holder.

· Foot print measures 7-1/4" X 3" X 2-1/2"  (185mm X 76mm X 64mm).

· VMWT-C molded wafer tip for handling up to 8" wafers

· Produces 10 inches of mercury.

· 110 Volt power supply upon request.
